In terms of the overriding objective of the new aero rules, the new front wing and new underfloor explained in the prior two Tech Tuesdays put together the airflow in a way in which the new rear wing can finish the process – of throwing the car’s turbulent wake higher into the air and absent from the entrance wing of the pursuing automobile. It also functions as a conventional rear wing in generating downforce.

Nevertheless not very as a lot downforce as prior rear wings produced. It carries two aspects, as just before, though with additional stringent controls on the form of the elements and the volume by which they are permitted to overlap.

TECH TUESDAY: Why new floors should aid increase F1’s wheel-to-wheel action in 2022

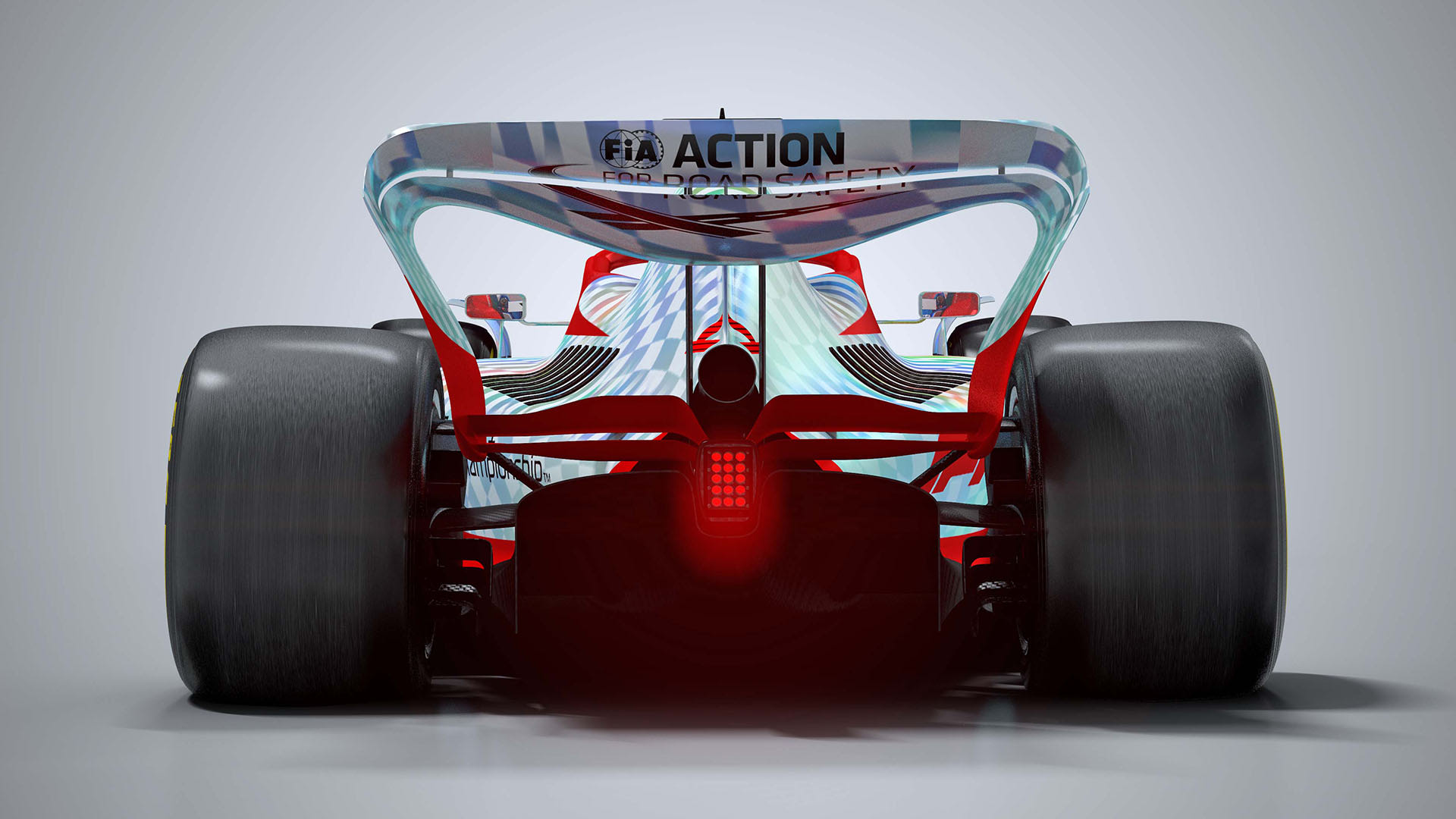

The new, extremely distinct form is established by the things, endplates and beam wing forming one steady line with no sharp corners. It is about additional than wanting smooth for the reason that the endplates can no lengthier fence off the wing things and should be flush, they can no lengthier stop leakage of the airflow across the surfaces of those features and off the edge.

This would make the features – which count on the pressure distinction involving the underside and higher floor to do the job – less successful in producing downforce but, extra importantly, considerably cuts down the vortices of spinning air spilling off the wing corners the place two separate airflows combine. Lowering these vortices can make the wake much a lot less turbulent and unfavourable for the car or truck at the rear of.

Furthermore, the corners of the endplate have to be radiused by a specified quantity to stay away from those people vortex-inducing sharp corners. Those people endplates may well no for a longer period have slats in them to equalise the pressures in between their internal and outer faces. This also decreases their usefulness in developing downforce from the car or truck, but tremendously cleans up its aerodynamic wake.

Decline of downforce in comparison between 2021 and new 2022 car

The endplates then sweep rather significantly inboard. As the air travelling about the physique from the entrance reaches this section of the car or truck, the inward sweep of the endplates pulls it inboard of the rear wheel, narrowing the complete aerodynamic wake of the vehicle and protecting against it from spilling outwards to the detriment of the vehicle powering.

The air is effectively funnelled into the spot which meets the underfloor venturi exits. The air exiting the upward angle of the venturi exit ramp (an angle ongoing by the underside of the beam wing) is scavenged by the pressures developed by this air which has been funnelled by the endplates. The full convergence is then thrown large by that upwards venturi/beam wing sweep.

TECH TUESDAY: How the front wing on the all-new 2022 cars and trucks has been intended to enhance overtaking

That beam wing – which would make a return to the rules, possessing been banned considering that 2014 – creates a small-stress spot behind the exit ramps of the underfloor venturis, accelerating the exit air, and therefore the speed of the entire underbody airflow. This enhances the downforce made by the underfloor, compensating for the reduction in downforce from the new wings.

Beam wings, circled in crimson below, are back again for 2022 (shown on the 2022 showcar featuring Williams’ 2021 livery)

As with the wing element-to-endplate changeover, so with the endplate-to-beam-wing, there can be no overlapping of surfaces. They have to kind a continuous line – for the similar purpose: that of restricting the development of vortices, which hurt the aerodynamics of the next car or truck.

Observe: Every thing you need to know about the new 2022 F1 motor vehicle

The complete downforce produced by the vehicles is expected to be only a bit decreased than those people of final year, but the proportion produced by the underbody is much greater, and that of the wings and in excess of-physique correspondingly much less.

As a driver catches the car in advance, that shapely rear wing he sees significant in his eyesight will no for a longer time be linked with a sudden loss of front downforce from his have auto. In this way, the hope and expectation is that we’ll see battling vehicles moving into the straights a great deal nearer than we’ve come to be utilised to over the decades.
